The Smartphone Charging Cabinet – Lyte 20 Single Door Mobile Phone is a single-door USB A charging cabinet designed to charge and store up to 20 smartphones, mobile phones and other handheld USB devices up to 7″ screen size, including devices in protective cases.
Each device sits horizontally in its own individual compartment, large enough to accommodate phones in standard protective cases. The compact internal layout keeps all 20 devices organised in a single, secure cabinet.
An integrated 20-port USB A charging hub delivers simultaneous charging of up to 20 devices at 10.5W per port (2.1 amps maximum). Smart current management auto-detects every connected device and supplies the maximum power it can safely receive, switching to trickle charging once a device reaches 100%.
Designed as a static unit, the Lyte 20 Single Door Mobile Phone sits permanently on a desk, counter or in a fixed location. L-shaped non-marking feet support the unit at its base, ensuring air circulation and easy cleaning. Compact dimensions make the cabinet suitable for staff rooms, ward storage areas, retail back-offices and other environments where personal phones need to be stored away from the workspace.
Built to commercial-grade furniture standards, the unit is tested for durability, stability and weight-bearing loads. A silent ventilation system maintains airflow without noisy fans, while built-in over-current and over-voltage protection safeguards every connected device.
Delivered fully assembled and backed by a Lifetime Warranty (5 years electrical), the Lyte 20 Single Door Mobile Phone provides a reliable, secure and professional smartphone charging cabinet for education and workplace environments.

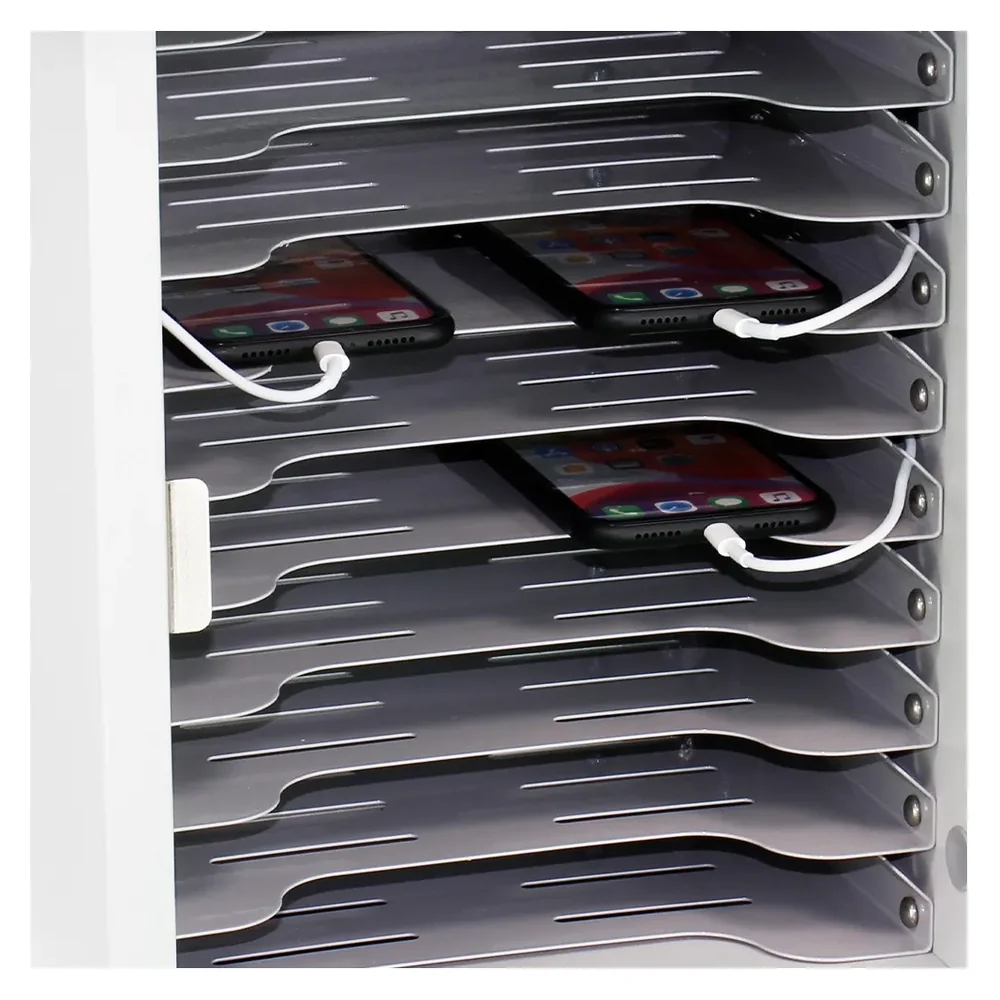

The Smartphone Charging Cabinet – Lyte 20 Single Door Mobile Phone is designed to store and protect up to 20 smartphones up to 7″ in individual horizontal compartments, sized to accommodate phones in standard protective cases.
The horizontal layout enables devices to be picked up and returned easily, while the single-door design provides full access to all compartments when the door is open. A durable MFC cabinet with a key locking system protects devices when locked.
This smartphone storage cabinet ensures safe, organised and access-controlled phone management in staff rooms, retail back-offices and other environments where personal phones must be stored away from the workspace.
The Lyte 20 Single Door Mobile Phone features an integrated 20-port USB A charging hub, enabling simultaneous charging of up to 20 smartphones at 10.5W per port (2.1 amps maximum). Smart current management auto-detects every connected device and supplies the maximum power it can safely receive, switching to trickle charging at a rate equal to the battery’s self-discharge once fully charged.

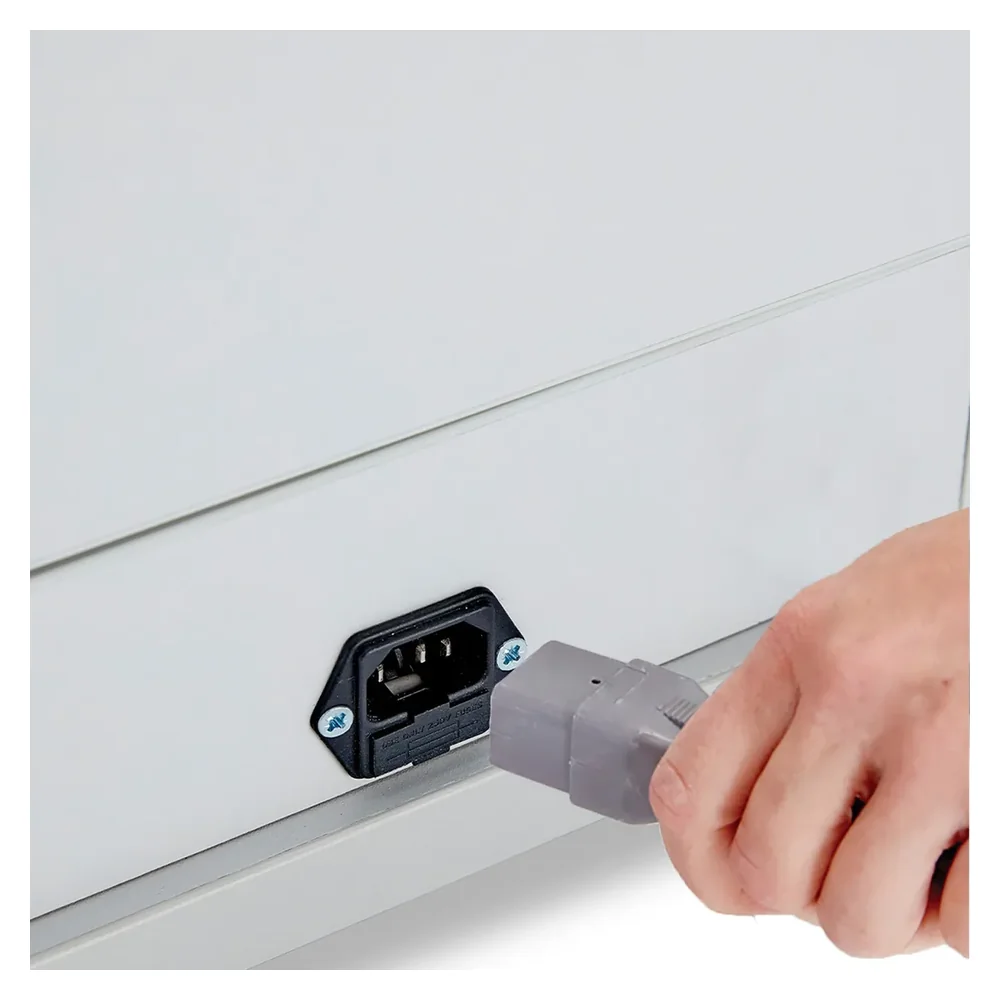

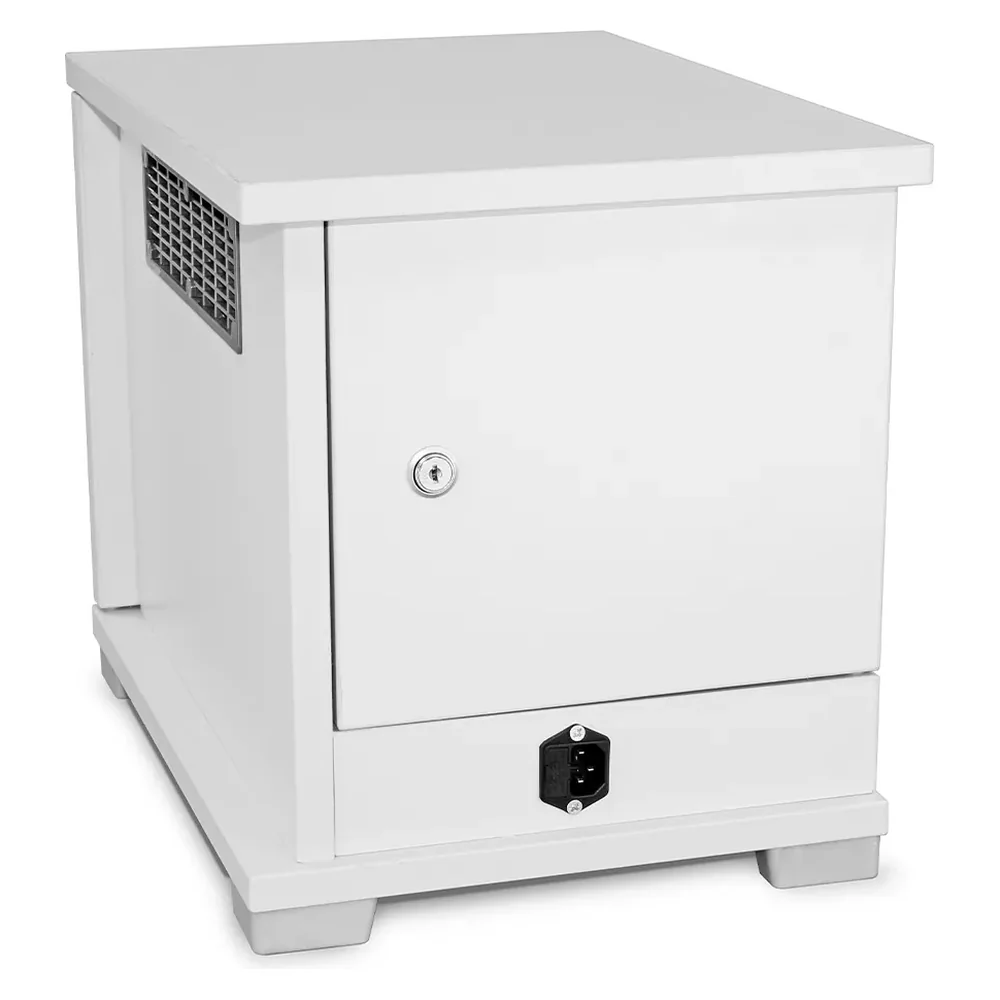

An IEC socket with a 1.8m (6ft) power cord powers the entire cabinet from a single mains connection, replacing the need for individual phone chargers, extension leads or power sockets.

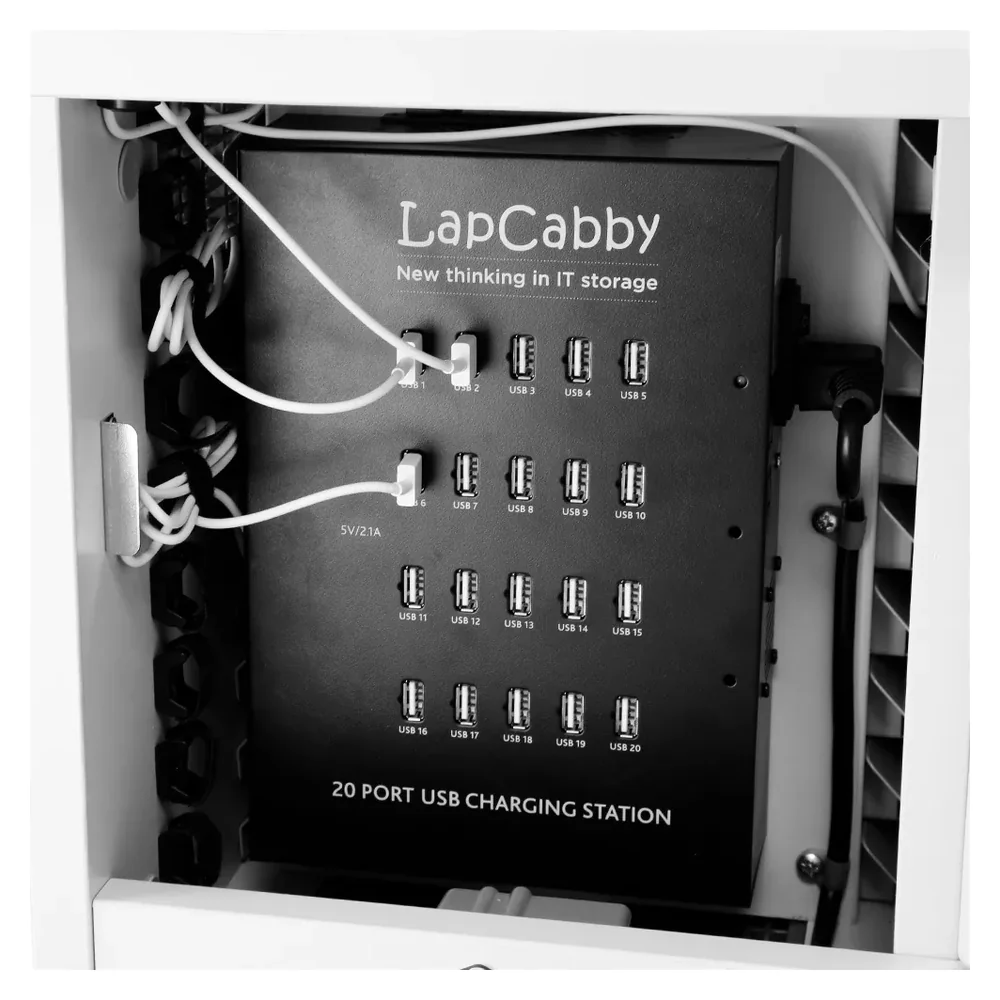

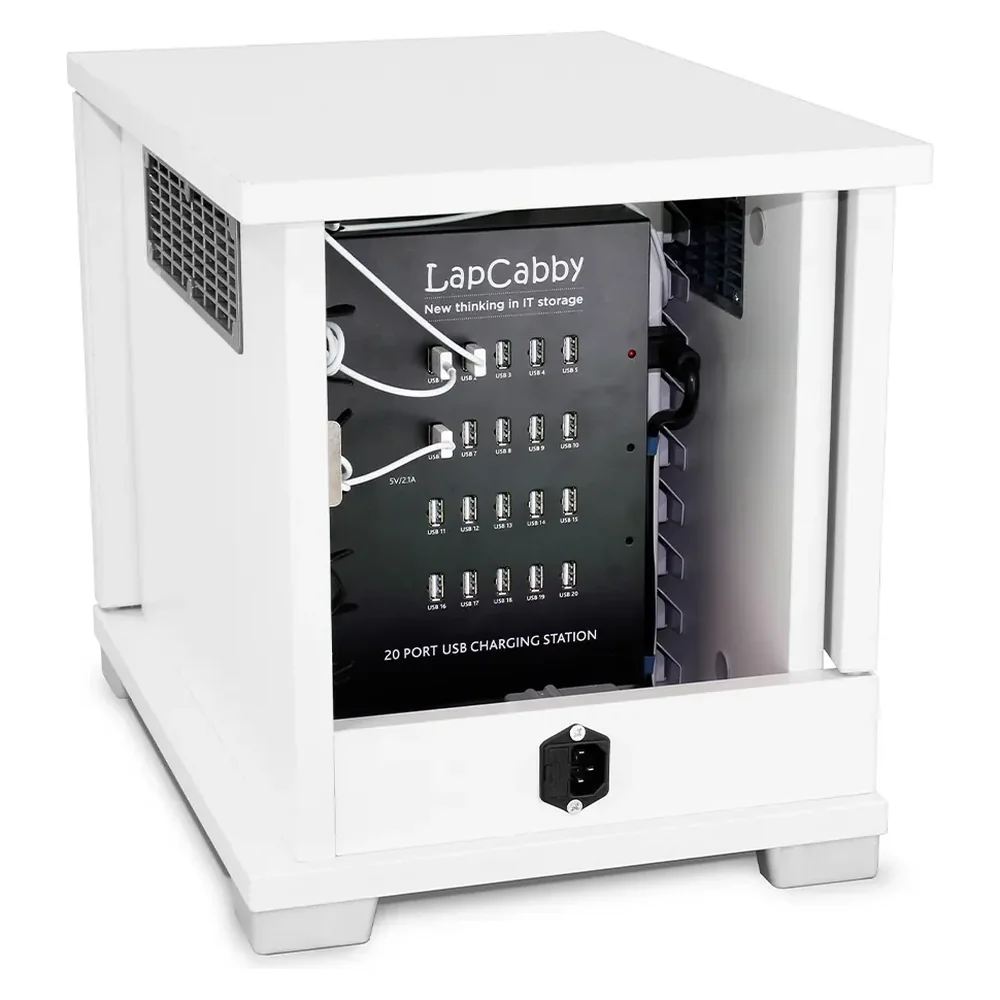

Efficient cable organisation is essential in any smartphone charging cabinet. The Lyte 20 Single Door Mobile Phone routes all USB and power cabling through a separate, lockable rear power compartment, where the USB A hub is housed.
Cables feed from the rear power compartment to the front device compartment through dedicated portholes with secure anchor points, preventing cables from being pulled out with devices when they are removed.

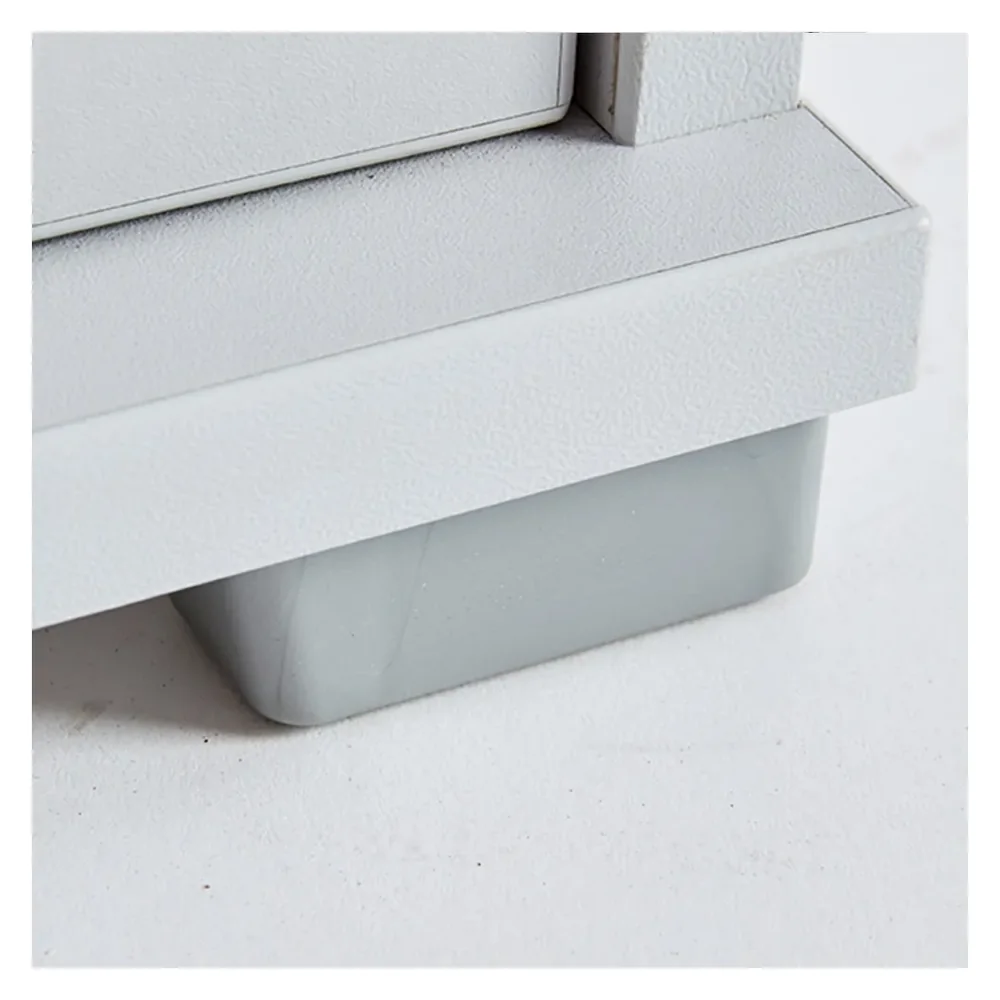

Designed as a static cabinet, the Lyte 20 Single Door Mobile Phone is intended to sit permanently on a desk, counter or in a fixed location. L-shaped non-marking feet at the base of the unit ensure air circulation and easy cleaning underneath, suiting busy spaces like staff rooms, ward storage areas and retail back-offices.

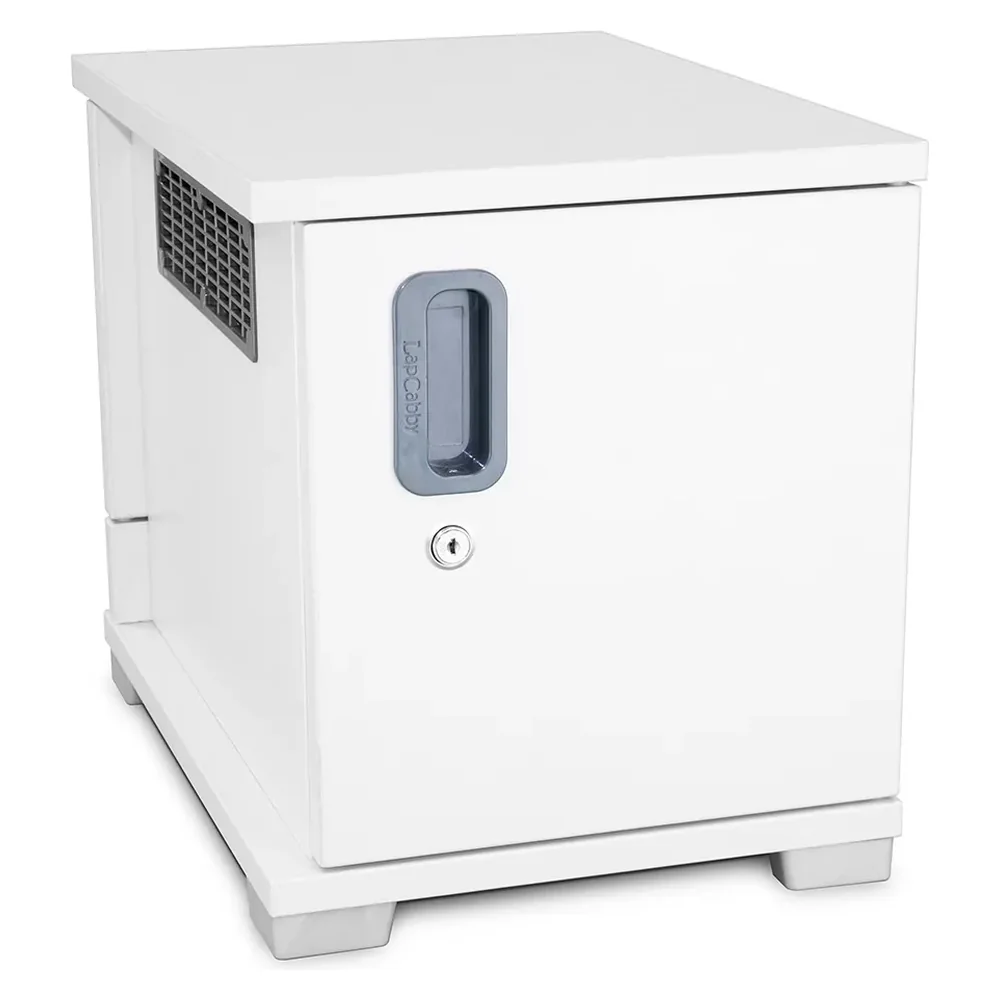

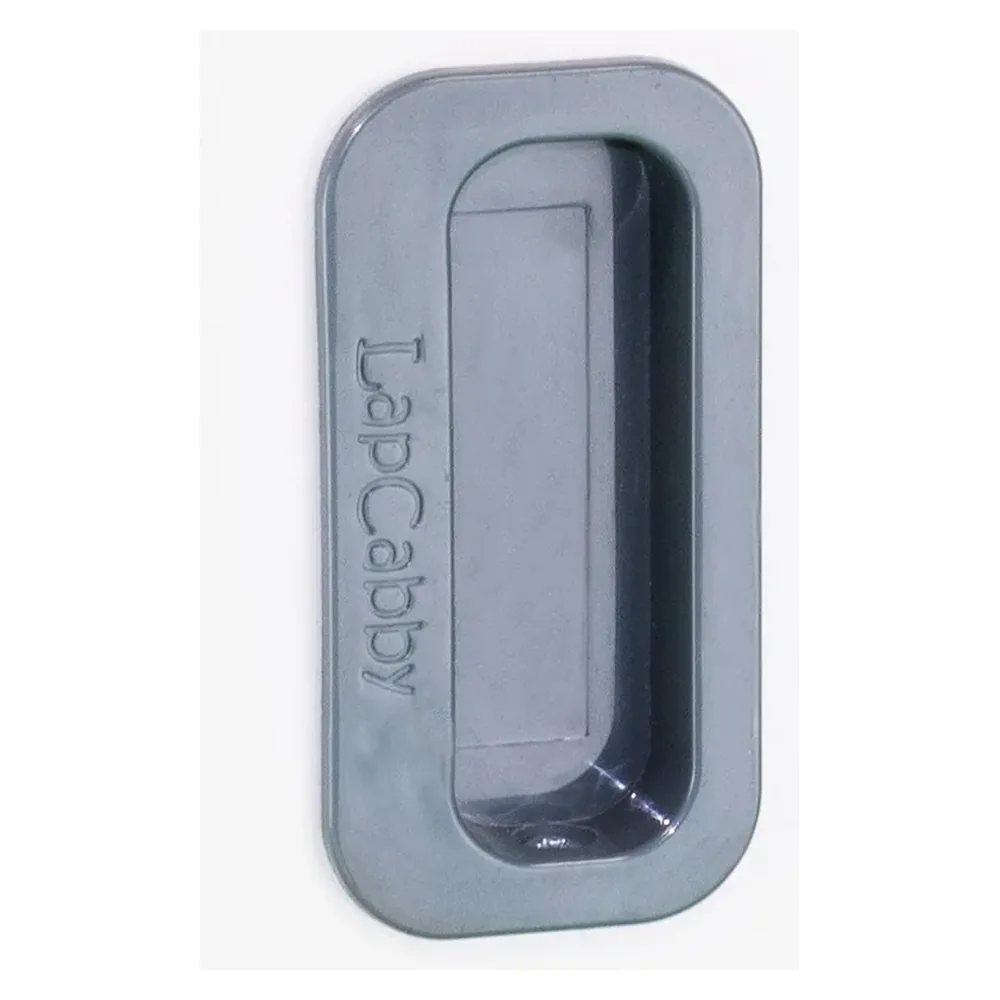

Security and safety are central to the design of the Lyte 20 Single Door Mobile Phone. A durable MFC cabinet with a key locking system protects stored smartphones from unauthorised access, while inset door handles prevent protruding parts and reduce risk of breakage.
An isolated power compartment conceals the electrical components and prevents loss or damage of cables. Built-in over-current and over-voltage protection safeguards every connected device.
Built to commercial-grade furniture standards, the unit is tested for durability, stability and weight-bearing loads. The unit is safety tested and self-certified for CE compliance and manufactured in accordance with recognised international standards.
The Lyte 20 Single Door Mobile Phone ships fully assembled with L-shaped feet already fitted and is ready to use — connect the mains lead and the cabinet is operational immediately.
Each unit is supported by a Lifetime Warranty (5 years electrical) and backed by dedicated technical support via phone, email and live chat, ensuring long-term reliability and peace of mind.
| Product Family | Smartphone Charging Cabinet |
|---|---|
| Range | Lyte |
| Type of Device | Smartphone |
| Device Screen Size | 7" |
| Number of Devices | 20 |
| Charge & Sync | Charge Only |
| Type of Charging | USB A |
| Type of Unit | Static |
| Watts per Port | USB A - 10.5W |
